Series: TGK

TGK Series

#Has the same sensing distance for any metal # IP67 protection level

8

SKU variants

TGK8-30-ANH1

Series: TGK

Quick Selection

SKU variants: 8

Selected configuration

Model

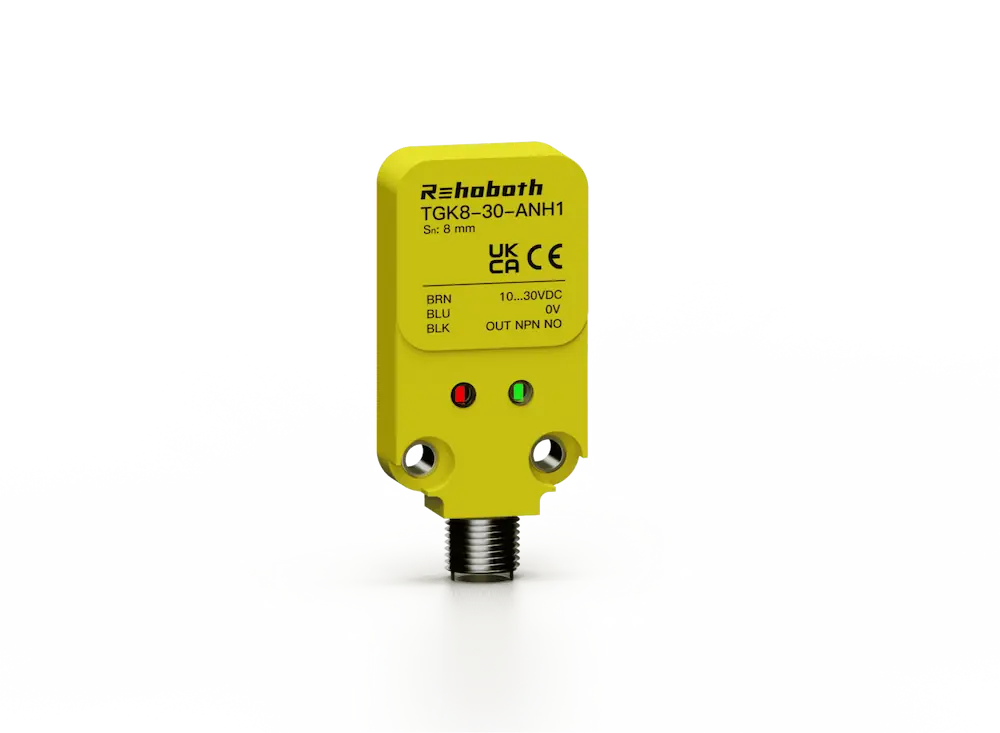

TGK8-30-ANH1
Series
TGK
Detection Distance
8mm
Controlled output
NPN Normally Open
Connection method
Plug-in type (M12)
Request a Quote

Technical Specs

Power supply10...30VDC(ripple P-P:≤10%)
Current Consumption≤10mA
Detection Distance8mm
Detecting objectsMetal
Movement differential ≤ 10% of the detection distance
Response frequency300Hz
Using ambient temperature-25~70°C
Utilize the surrounding humidity35~95%RH
Protection RatingIP67
Connection methodWire lead out type Ø 5mm, 3-core, 2m
